PBM

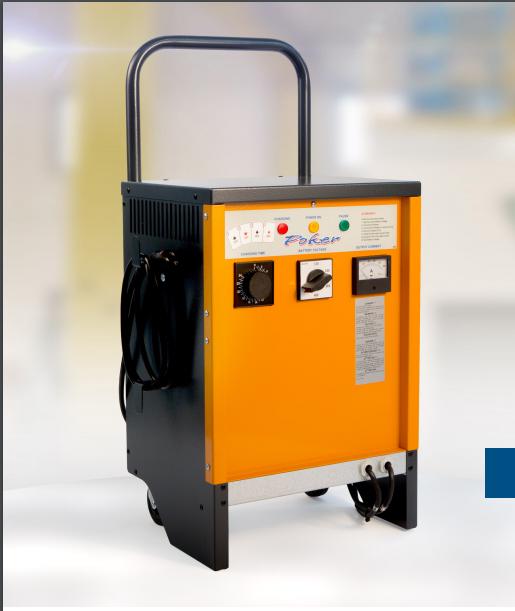

- The POKER Model PK120-C43 @ $839
Plus actual shipping
MULTI-VOLTAGE BATTERY CHARGER
TECHNICAL GENERAL
REMARKS :
- Mains input: 120V AC ±5%, UL-listed 20A
input fuse,Input Current 15A AC max. Equipped with NEMA 5- 15A cables.
- Output: suitable for 12V, 24V, 36V and
48V lead-acid batteries.
- Electromechanical timer adjustable from
0 to 12 hours max.
- Electromechanical switch for output
voltages selection.
- Ammeter: 100A/100mV.
- Cabinet with wheels and handlebar for
easy handling.
- 24V AC auxiliary circuit with overload
cutout and 1.6A fuse.
DIMENSIONS: :
- 15.7"L x 33.5"H x 12.6"W (without
handlebar: 15.7"L x 23.6"H x 12.6"W)
- Weight: 88 lbs (40 Kg)
|
TYPE |
AC INPUT |
BATTERY
CAPACITY |
|
12V / 60A |
10.3A |
12V 480AH |
|
24V / 45A |
13.9A |
24V 360AH |
|
36V / 30A |
13.5A |
36V 240AH |
|
48V / 25A |
13.9A |
48V 200AH |
|
